HEATING FILM _ FLEXIBLE TYPE

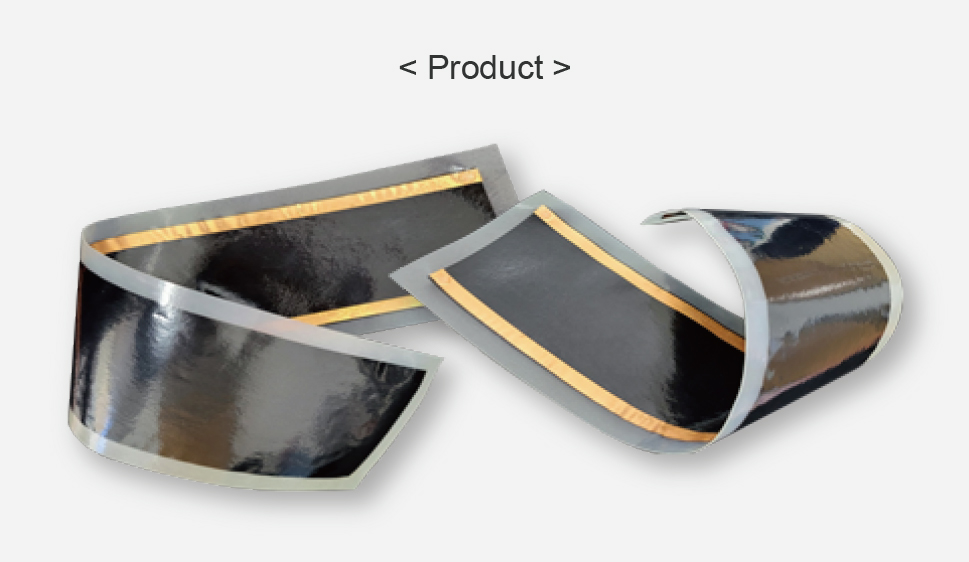

Heating Film

  • Flexible film + heating material
  • Flexible, thin and light
  • With low voltage, wide application range
Features
  • Applied flexible film + heating material
  • Safe without deformation of copper foil when folded
  • Easy to carry : Flexible, thin and light
  • The use of low voltage : Wide application range
  • Variable size: Within width 50~300mm and length 50~500mm, it is available to make standard module that meets customer’s requirements. And standard module can be connected to expand the heating film size.
Application
  • Heating vest / glove / hat
  • Heat pad for back / abdomen / joints
  • Wheelchair heating cushion

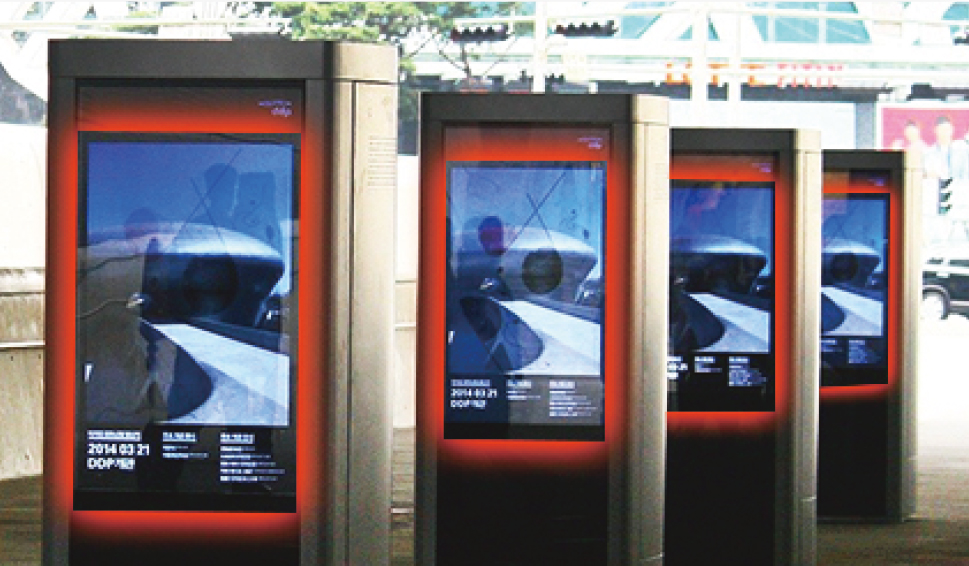

  • Temperature control system for the outdoor display system inside

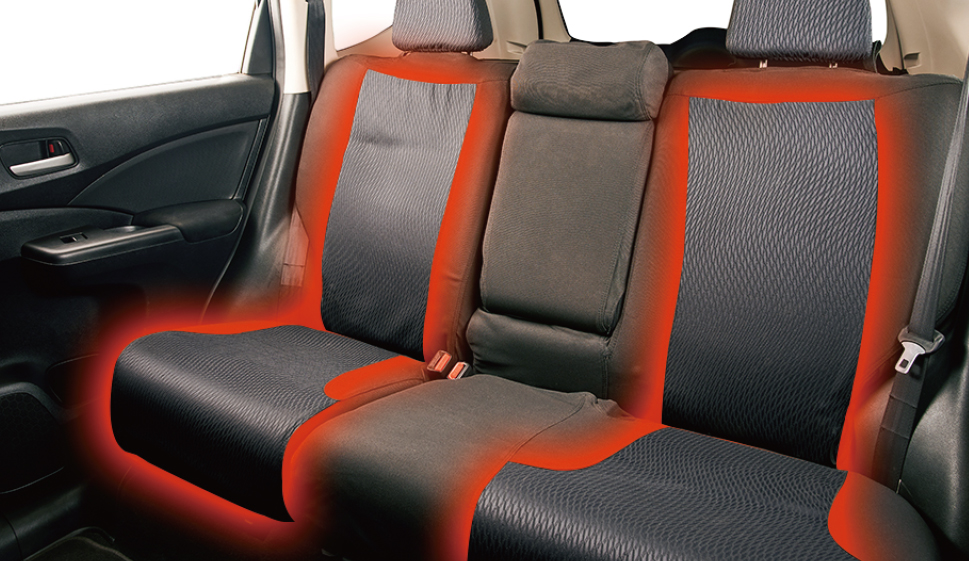

  • Automotive seat heater
SPECIFICATION
Model NFHF-05, 12, 24
Thickness(mm) 0.5 ~ 1
Power Input(V) DC 5
DC 12
DC 24
Dimension (Heating area) ※Customization available Width(mm) Min. 50
Max. 300
Length(mm) Min. 50
Max. 500
Maximum surface temperature(℃) ~ 60℃
* The specification is subject to change without prior notice.
